Ocean Tourbillon Jumping Hour

Ocean Tourbillon Jumping Hour - Harry Winston
Baselworld - The Ocean Collection introduces for the first time two sophisticated complications - tourbillon and jumping hour - in a single watch.




The jumping hour complication, new for the Ocean Collection, adds its dynamic presence to a remarkable timepiece that is a showcase for Harry Winston's calibre HW4401, which required more than 1500 hours of development.


The tourbillon is considered one of watchmaking's most sophisticated complications –originally developed at the dawn of the 19th century. Today, the tourbillon is revered by connoisseurs not only for the history and craftsmanship it represents, but also for the mesmerizing visual effect it creates, which is unlike any other complication.


The tourbillon in the Ocean Tourbillon Jumping Hour has a very unusual design. Instead of being located on the back of the movement plate, it is suspended from two gleaming, hand-chamfered steel bridges which seem to hold it free in space –seeming to move with no apparent mechanical connection to the rest of the timepiece. Only sharp eyes will uncover its secret: the tourbillon is driven by a wheel geared to its outer circumference, which is nearly completely concealed by the minute track of the dial.

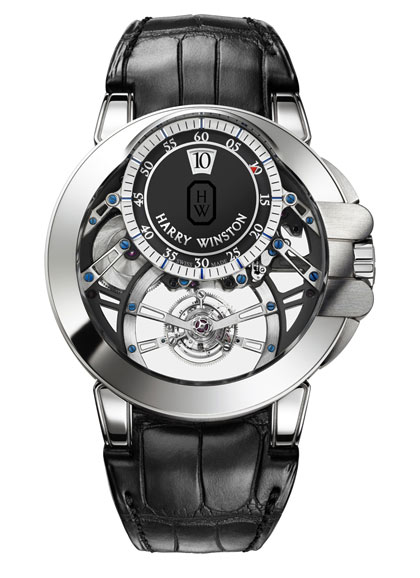

Floating in between two panes of sapphire, the tourbillon's open structure contrasts with the rich opacity of the dial, which is also suspended from a system of meticulously hand-finished, open-worked bridges. Executed in black sapphire, the dial reveals the hour through an aperture at the 12 o’clock position, which "jumps" instantaneously once per hour. Unlike many jumping hour watches, the Ocean Tourbillon Jumping Hour timepiece has a minute hand which has been specifically designed so that the hour window is never blocked.


The Ocean Tourbillon Jumping Hour timepiece provides a powerful visual experience –its design draws inspiration from the vocabulary of classic Modernist architecture, which takes advantage of the unique structural and visual properties of steel and glass to create a bold geometry that is also the essence of the Ocean Tourbillon Jumping Hour watch. The combination of a tourbillon rotating once every sixty seconds and a minute hand rotating once per hour is a mechanical meditation on the nature of time itself –with the action of the jumping hour complication lending its own special tempo to this symphony of high horology.







OCEAN TOURBILLON JUMPING HOUR


Technical Specifications



References

OCEMTD45WW005

OCEMTD45WW006

OCEMTD45RR005

OCEMTD45RR006


Movement: Caliber HW4401

Type: Mechanical, manual winding

Dimensions of movement

Total diameter: 36 mm

Height: 8.62 mm

Number of components: Complete movement: 330 components

Number of jewels: 41 rubies

Power reserve: 110 hours

Barrels: Twin barrels in series

Balance wheel

Variable-inertia balance Alt. / hour: 28’800 (4Hz)

Balance spring: Flat spring

Main plate: Hand-chamfered, fine shotpeening

Bridges:Hand-chamfered, leveled

Tourbillon

Rotating cycle of 60 seconds

Tourbillon weight: 0.49 gr


Movement finish

Skeletonized movement

Côtes de Genève

Black DLC treatment, micro-blasted

Circular grained gear trains


Functions

Jumping hour, minutes

Tourbillon

Seconds indicator on the tourbillon

Power-reserve indicator on the case back


Case

18K white gold or 18K rose gold

Polished case and bezel, satin-brushed finish case band

Circular satin-brushed Harry Winston triple arches at 3 o’clock

Integrated jumping hours counter

Case dimensions

Diameter: 45.6 mm

Height: 13.2 mm

Crystal: Sapphire

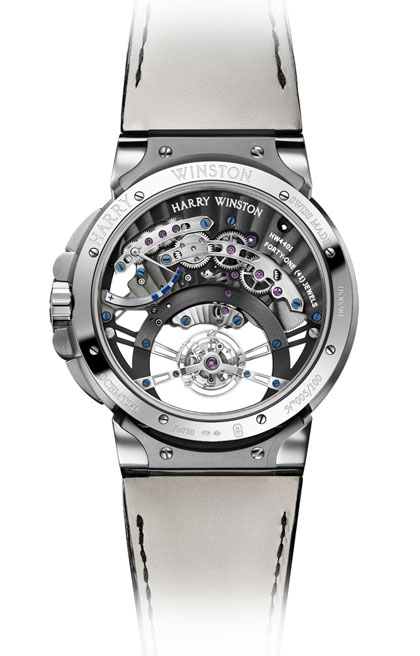

Case back: Sapphire crystal display back

Water resistance: 50 meters

Crown

Polished 18K white gold or 18K rose gold

Embossed HW logo


Dial

Black sapphire dial, delimited by the metallization of the engraved dial train and indexes

Rhodium-plated or rose gold hour aperture

Sandblasted, emerald-shaped HW logo

Diamond Setting :

OCEMTD45WW006 & OCEMTD45RR006: Case set with 58 baguette-cut diamonds (approximately 6.25 carats)

Strap: Hand-sewn black matte alligator leather

Buckle: Polished 18K white or rose gold ardillon buckle


Limited Edition

OCEMTD45WW005: 100 pieces

OCEMTD45WW006: 10 pieces

OCEMTD45RR005: 200 pieces

OCEMTD45RR006: 10 pieces
